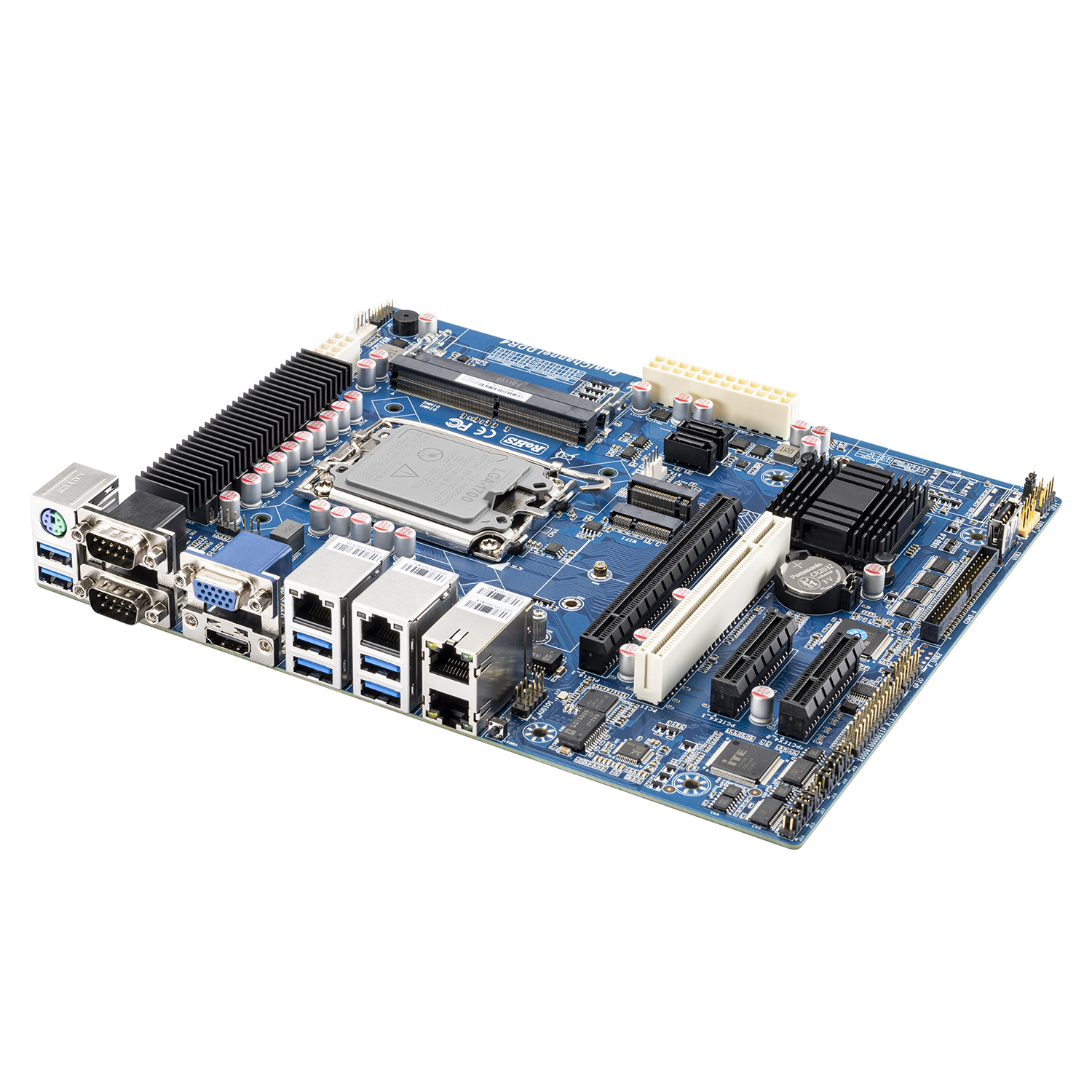

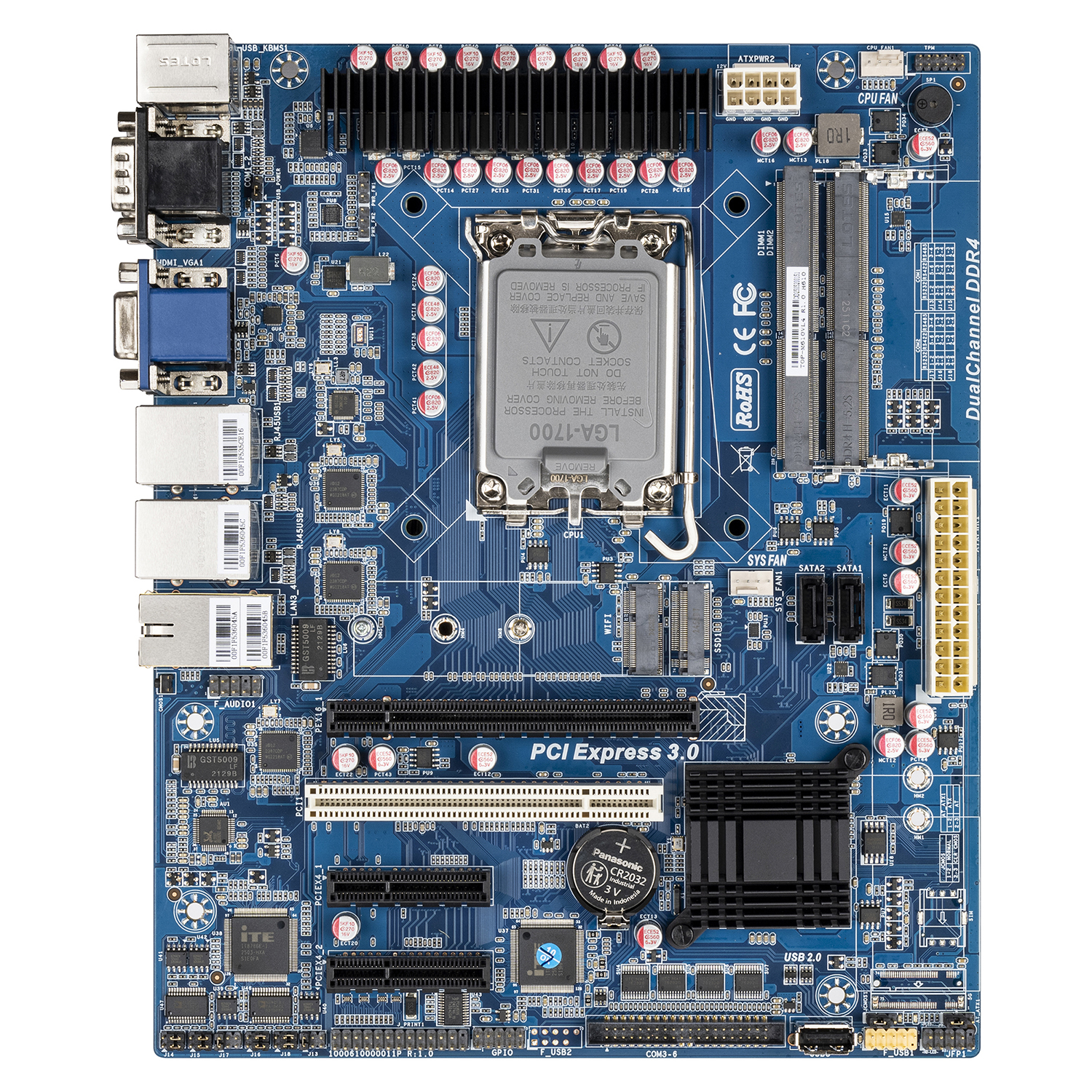

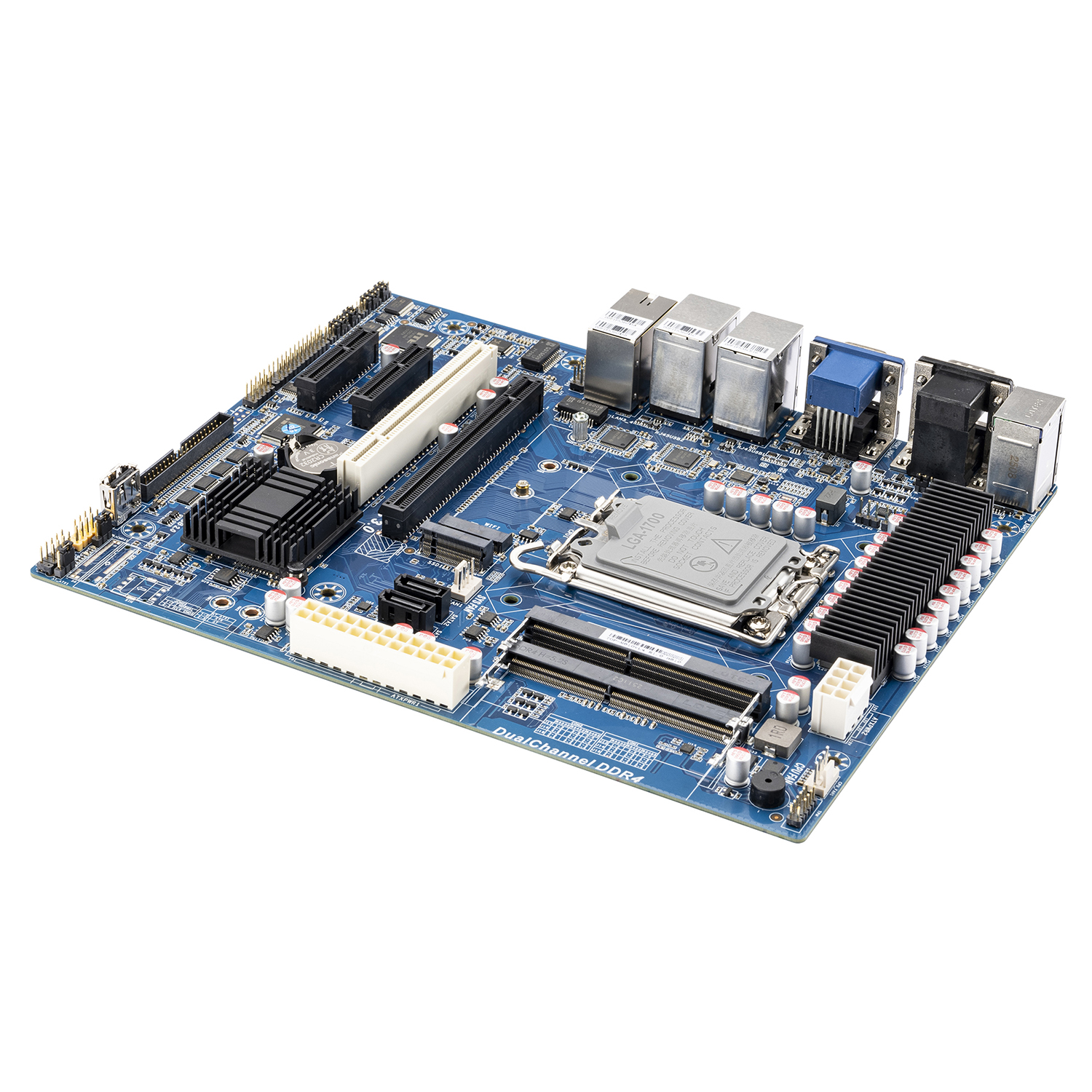

TOP-M610VL4
■ 支持 12th 13th 14th Gen Core? i9/i7/i5/i3processor with H610 chipset
■ 2個 SO-DIMM槽最大支持 支持最高可達 128GB DDR4 3200 MHz SDRAM
■ 支持VGA, HDMI, 4個intel 網卡
■ 支持6個COM，4個USB 3.0，5個USB 2.0
■ 可擴展1個PCIe x16，1個PCIe x4 2個PCI，支持m.2 SATA
產品規格
|
處理器 |
支持Intel? Core? i9/i7/i5/i3 processor |
|
|
芯片組 |
Intel H610 |
|
|
BIOS |
AMI EFI 64 Mbit SPI |
|
|
擴展槽 |
PCI |
1 slot |
|
PCIe x16 (Gen4) |
1 slot |
|
|
PCIe x4 (Gen3) |
2 slot |
|
|
M.2 |
支持M.2 SATA |
|
|
|
|
|
|
M.2 |
支持wifi6 |
|
|
內存 |
Technology |
Dual Channel DDR4 @1.2V 3200MHz |
|
最大支持 |
64 GB/32 GB per DIMM |
|
|
插槽 |
2 x 260 -pin SO-DIMM |
|
|
圖形 |
集成顯卡 |
Intel HD Graphics |
|
VGA |
1920*1080@60Hz |
|
|
HDMI |
3840 x 2100@60Hz |
|
|
|
|
|
|
以太網 |
LAN1 |
GbELAN1：10/100/1000 Mbps intel i219 |
|
LAN2 |
GbELAN1：10/100/1000 Mbps intel i210 |
|
|
LAN3 |
GbELAN1：10/100/1000 Mbps intel i210 |
|
|
LAN4 |
GbELAN1：10/100/1000 Mbps intel i210 |
|
|
SATA |
最大數據 |
速度 600 / 300 MB/s (SATA 3.0 / SATA 2.0) |
|

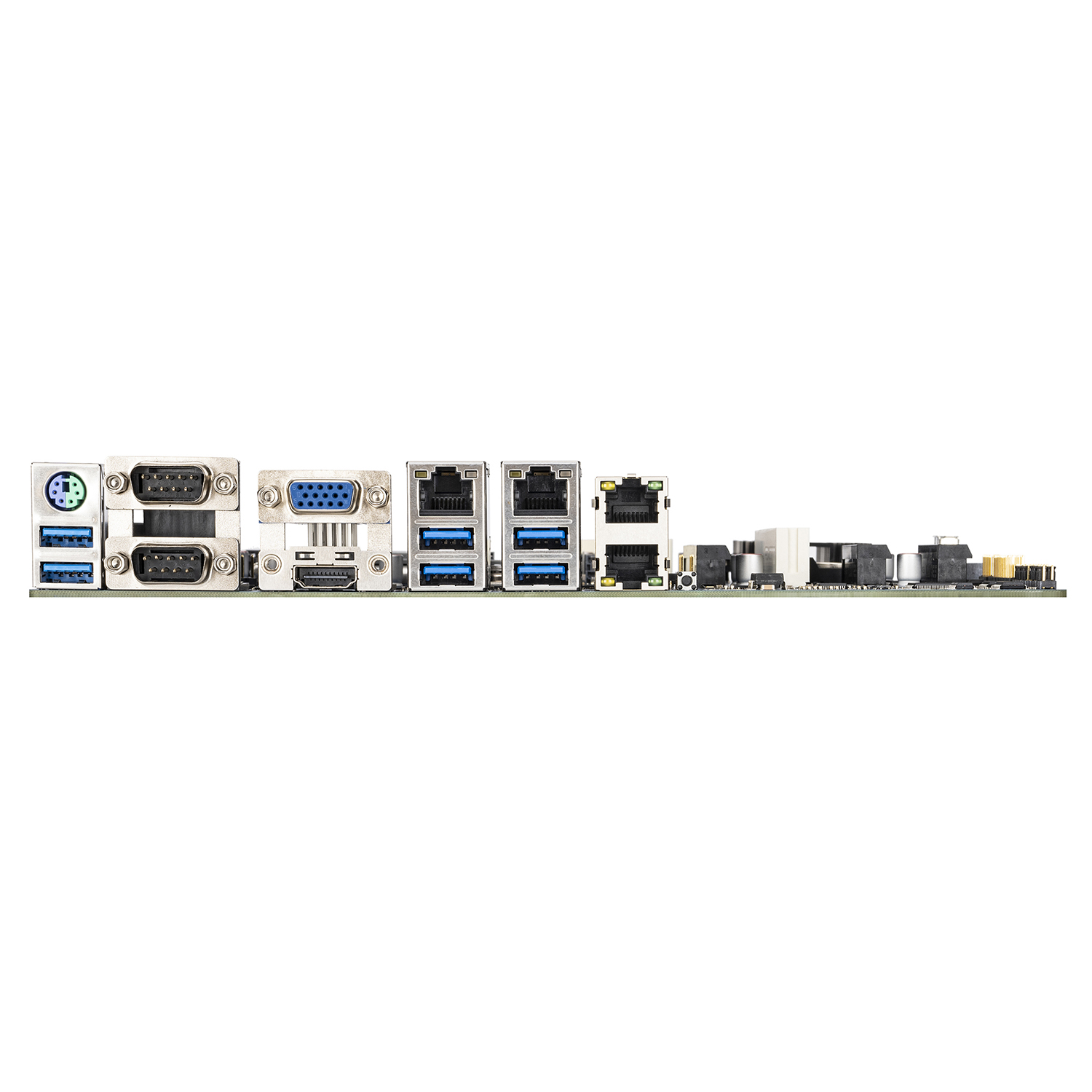

I/O接口 |
VGA |
1 |
|
|
|
|
|
HDMI |
1 |
|
|
Ethernet |
4 |
|
|
USB |
USB3.0 x 4, USB2.0 x 5 |
|
|
Serial |
2 (RS-232, COM1，COM2 Support RS-232/422/485 ) |
|
|
PS/2 |
2 (1 x Keyboard and 1 x Mouse) |
|
|
內部接口 |
USB |
3 (USB 2.0) |
|
Serial |
4 (COM3-6支持 RS-232 ) |
|
|
SATA |
SATA3.0 x 2 |
|
|
TPM |
1 |
|
|
M.2 |
1 |
|
|
GPIO |
8-bit GPIO 4進/4出 |
|
|
LPT |
1 |
|
|
AUDIO |
1 |
|
|
看門狗 |
|
|
|
Output |
System reset |
|
|
環境 |
工作溫度：-20-60攝氏度 |
|
|
儲存溫度：-40-85攝氏度 |
||
|
工作濕度：5%-95%，無冷疑 |
||
|
尺寸 |
245*200MM |
|
CPU選項（產品規格表內信息）
|
CPU |
CPU i9-14900 |
CPU i9-14700 |
CPU i9-13900 |
CPU i9-12900 |
CPU i9-13700 |
CPU i7-12700 |
CPU i5-13500 |
CPU i5-12500 |
|
核心數 |
24 |
20 |
24 |
16 |
16 |
12 |
14 |
6 |
|
主頻 |
5.4GHz |
5.4GHz |
2GHz |
2.4GHz |
2.1GHz |
2.1GHz |
2.5GHz |
3.0GHz |
|
三級緩存 |
32M |
33M |
36M |
30M |
30M |
25M |
24M |
18M |
|
功率 |
65W |
65W |
65W |
65W |
65W |
65W |
65W |
65W |
Ordering Information
|
Part Number |
PCH |
Memory |
VGA |
DVI |
HDMI |
USB3.0/2.0 |
COM |
LAN |
PCIe x16 |
PCIe
X4 |
PCIe
X1 |
PCI slot |
|
|
8100670001010P |
H610 |
Non ECC |
1 |
1 |
1 |
4/5 |
6 |
4 |
1 |
2 |
無 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Packing List
|
Part Number |
Description |
Quantity |
|
|
|
1 |
|
3423011500401P |
串口線 2.0MM 一轉四串口線 |
1 |
|
|
|
|
|
|
|
|
